Swirl Flap Delete: How It Works, Symptoms and Fault Codes

Published Updated
Swirl Flap Delete: How It Works, Symptoms and Fault Codes

Short answer: A swirl flap delete blanks or removes the intake swirl flaps and switches off their control in the ECU software. Owners usually do it after flap screws loosen, shafts leak or carbon makes the flaps stick, which is common on BMW M47 and M57, Mercedes OM642 and Opel 1.9 CDTi diesel engines. CaracalTech supplies the software part for 592 ECUs from $75 per file.

What is a swirl flap delete?

A swirl flap delete means blanking or removing the swirl flaps in the intake manifold and changing the ECU software so that it no longer controls or monitors them. The flaps close one intake port per cylinder at low rpm to create swirl. On some engines their screws loosen, the shaft leaks or carbon makes them stick, which sets fault codes such as P2004. The CaracalTech swirl flap solution covers 592 ECUs across 43 brands, mostly Bosch (373) and Siemens (98).

ItemDetailSource
What swirl flaps doClose one intake port per cylinder at low rpm so the air enters with a swirl, for better mixing and lower emissionsobd-codes.com, P2004
How they are movedVacuum actuator with a solenoid, or an electric actuator; the ECU checks a position sensorobd-codes.com, P2004
Common failuresLoose screws or rivets, carbon build-up that makes the flaps bind, worn shaft sealsobd-codes.com, P2004
Supported ECUs592 ECUs across 43 brandsCaracalTech swirl flap solution card
ECU makersBosch 373, Siemens 98, Delphi 47, other makers 65CaracalTech swirl flap solution card
PriceFrom $75 per file (1 credit)CaracalTech swirl flap solution card

What you Will Read in This Article:

  • Swirl flap delete: short answer
  • What Is Swirl Flap?
  • How Swirl Flap Functions?
  • What is swirl flap delete and why?
  • Swirl flap symptoms
  • Swirl flap delete pros and cons
  • Which Vehicles Have Swirl Flap?
  • Diesel engines with common swirl flap problems
  • Swirl Flap removal software
  • Swirl Flap delete remap cost?
  • Swirl Flap Removal/Delete software Training
  • Swirl flap fault codes
  • Frequently asked questions

What is Swirl Flap?

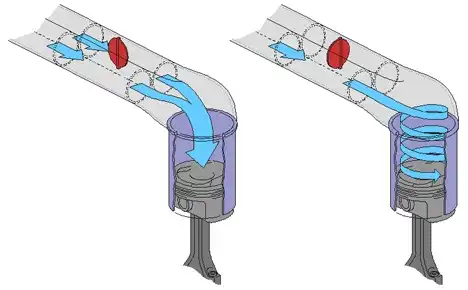

Diagram of intake air entering a cylinder without swirl and with swirl created by a flap in the intake port
how swirl flaps work

Swirl flaps are small valves fitted in the intake ports just before the cylinder head on many modern engines, especially diesels. They became common in the early 2000s, for example on BMW M47 and M57 diesel engines, and are used by many makers, including Audi, Volkswagen, Mercedes, Mazda and Vauxhall. Most systems have one flap per cylinder, mounted on a shared shaft.

Swirl flap closed and swirl flap open in a diesel intake port, with the injector and valves shown
Swirl Flaps Function

These flaps improve the mixing of fuel and air and help reduce emissions at low engine speed. Many are metal plates fixed to a shaft with small screws or rivets; others are plastic. The shaft is sealed with O-rings and turned by an actuator through an external lever.

But how does the swirl flap work? We answer this question in the following lines.

How Does Swirl Flap Work?

Swirl flaps were designed to reduce emissions at low RPMs and improve the combustion of air and fuel.
What we know of fluid mechanics indicates when the intake air entering the cylinder is turbulent with a high Reynolds number, the air and fuel are combined more efficiently, resulting in enhanced combustion, which, in turn, leads to reduced emissions. For this to happen, the speed of intake air should be increased. To do this, the flaps close one of the two intake ports of each cylinder, so all the air passes through the other port at a higher speed and enters the cylinder with a swirling motion.

Intake manifold with two round swirl flaps visible in the cylinder head ports
Swirl Flaps Location

At higher RPMs, the flaps open to supply more air needed for that specific engine RPM. Above roughly 2,000 rpm (the exact point depends on the engine and load), the flaps are fully open and the air flows through both ports.
Older systems move the flaps with a vacuum actuator controlled by a solenoid; newer ones use an electric actuator with a position sensor. In both cases, the ECU keeps the flaps closed at low speed and load and opens them as rpm rises.

What is Swirl Flap Delete and Why?

Despite later design changes, swirl flaps still cause problems on many engines. The most common symptoms are listed below:

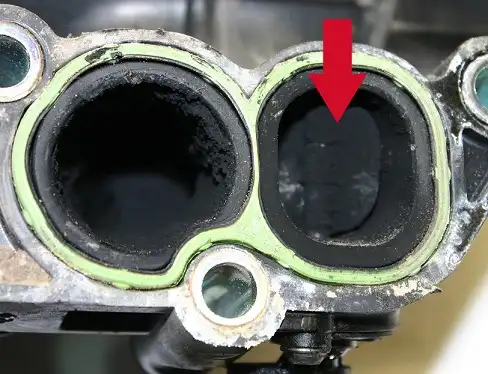

Intake port with carbon deposits, red arrow pointing to the port that holds the swirl flap
Swirl Flap Delete Pros and Cons -Swirl Flaps Symptoms

1) Deposits: Given the carbon in the EGR system and the oil in the vehicle's air intake system, carbon accumulation and sedimentation can reduce the size of the intake manifold and, even in some cases, cause the flaps to stick and get jammed at different positions and RPMs, which turns on the engine warning light.

2) Mechanical problems: On some engines, especially those with metal flaps, the screws or rivets that hold each flap to the shaft can loosen. Failure and breakage of these screws can cause them to fall into the combustion chamber, which will cause very severe damage to your engine, causing you significant repair costs.

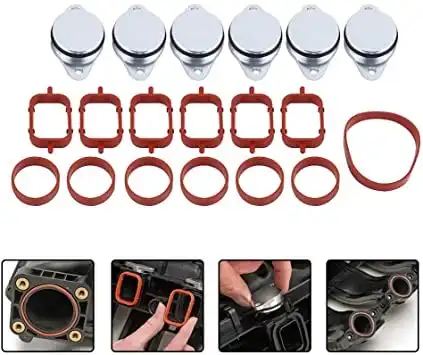

Swirl flap blanking kit with six aluminium plugs, intake manifold gaskets and fitting steps
Swirl Flap Delete Kit

3) Manifolds leak: Sometimes, long-time intense use causes the swirl flaps' shafts to fail, leading to leaking. Boost air then escapes from the intake manifold. This can upset the AFR (air-fuel ratio) and set fault codes.

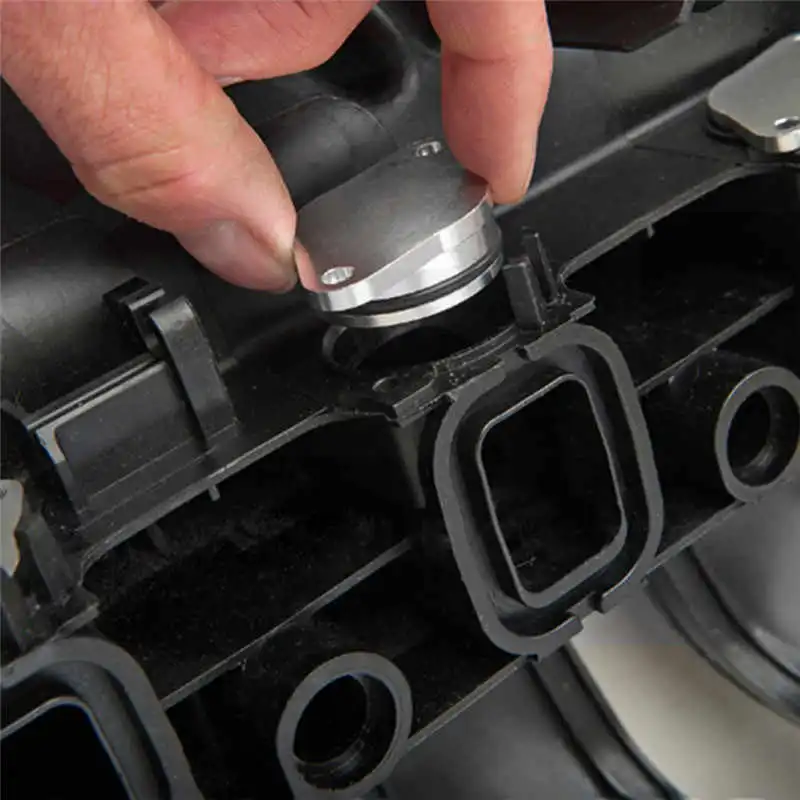

Fitting an aluminium blanking plug into a plastic intake manifold in place of a swirl flap
Swirl Flap Removal Installation

The reasons mentioned thus far, and other reasons might make some owners think of removing the swirl flaps. Swirl flaps can be removed manually, which will have some differences in the procedure depending on the vehicle type.

Swirl Flap Delete Pros and Cons:

The main advantages of swirl flaps are better mixing, slightly more torque at low rpm and lower emissions at low load. Disabling them removes that function, so the engine no longer has swirl control at low speed. The main reasons owners consider removal are the deposits, leaks and mechanical failures described above.

Which Vehicles Have Swirl Flap?

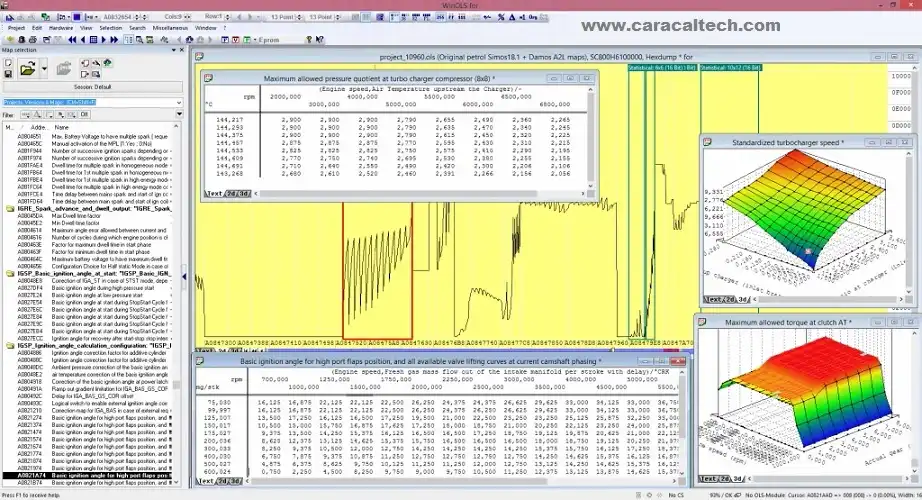

Tuning software screen showing ECU maps in 2D and 3D views
Swirl Flaps Removal Software

Swirl flaps are fitted to many diesel engines, for example BMW M47 and M57, and to many Volkswagen group, Mercedes, Renault and Opel engines. Our swirl flap solution lists 592 ECUs across 43 brands; the largest groups are Volkswagen (89 ECUs), Audi (86), Skoda (84), Seat (81), Mercedes (52) and BMW (25). If you are not sure whether your car has swirl flaps, contact us with the engine code.

Diesel engines with common swirl flap problems

Swirl flap failures are reported most often on diesel engines. The table lists engines where the failure is well documented by specialist sources, with the cars that use them. Exact years and versions vary by market, so check your engine code.

EngineExample vehiclesFlap designTypical problemSource
BMW M47TU (2.0 diesel)118d, 120d, 318d, 320d (2001 to 2004)Early metal flaps; vacuum or electric actuation depending on model yearThe fixing that holds the flap plate to its shaft can break, and parts can enter the cylinderunixnerd.co.uk
BMW M57, M57TU and M57TU2 (2.5 and 3.0 diesel)For example E39 525d and 530d, E46 330d, E53 X5 3.0d, E60 530dButterfly valves fixed to a rod with two small screws; plastic flaps from around 2006; early M57D25 and M57D30 only with automatic gearboxScrews loosen and are drawn into the cylinder, damaging piston, valves, cylinder head and sometimes the turbochargeraustraliancar.reviews
Mercedes OM642 (diesel)Sprinter NCV3 (2007 to 2018) and other Mercedes models with this engineFlaps moved by plastic actuator arms (swirl rods)Arms become brittle and snap; carbon and oil from the breather make the flaps stick; codes P2006 and P2007, low power or limp modeidparts
Opel/Vauxhall Z19DTH 1.9 CDTi and 1.9 JTDOpel Astra H, Vectra C, Signum, Zafira B; Alfa Romeo 147, 156, 159, GT; Fiat StiloPierburg manifold; a tumble flap closes one of two ports per cylinder, driven by an electric moduleWorn or tight flaps from oily intake air, short trips or crankcase vent faults; Opel code P1109, low power, emergency modePierburg tech tip

If your car has one of these engines, we can solve the software side for you: send us the original ECU read and we check the exact ECU and software version first. The swirl flap solution card lists 25 BMW ECUs (including Bosch EDC16C31, EDC17C06 and EDC17C50), 52 Mercedes ECUs (including Bosch EDC16CP31, EDC17CP46 and Siemens SID307), 17 Opel ECUs (including Bosch EDC16C39) and 4 Alfa Romeo ECUs. The flaps themselves still need to be blanked or repaired mechanically.

Swirl Flap Removal Software:

Blanking or removing the flaps is only part of the job. The ECU still controls the flap actuator and checks its position, so without a software change it sets fault codes (see the table below) and may reduce power. A swirl flap solution file changes the ECU software so that it no longer controls or monitors the flaps. Some owners combine it with a remap; you can share your plans with our experts so they can guide you.

Swirl Flap Delete Remap Cost?

The price depends on the car and the ECU. Our swirl flap solution file service starts from $75 per file (1 credit): you upload the original ECU read and receive the modified file.

Swirl Flap Delete Training Tutorial:

Here, you can learn once, fully and for good, the adjustments or removal of SWIRL FLAP in petrol and diesel engines. Below is a link to SWIRL FLAP training video in various software's and ECUs.

1- If you want to learn how to remove swirl flaps in Petrol and Diesel engines in WinOLS software, see our WinOLS Training Course.

2- If you need only swirl flap OFF file, upload original ECU file in Tuning File Service, after short time our experts send you remapped file.

3- If you know remapping software like WinOLS, you can use a CaracalTech WinOLS mappack for faster and more accurate work.

Swirl flap fault codes

These generic OBD-II codes are the ones most often linked to swirl flaps (called intake manifold runners in the OBD-II standard). Manufacturer-specific codes differ by ECU.

CodeMeaning
P2004Intake Manifold Runner Control Stuck Open Bank 1
P2005Intake Manifold Runner Control Stuck Open Bank 2
P2006Intake Manifold Runner Control Stuck Closed Bank 1
P2008Intake Manifold Runner Circuit Open Bank 1
P2015Intake Manifold Runner Position Sensor/Switch Circuit Range/Performance Bank 1
P2016Intake Manifold Runner Position Sensor/Switch Circuit Low Bank 1

Frequently asked questions

Do I need a software change after blanking the swirl flaps?

Yes. Blanking plugs close the holes left by the flaps, but the ECU still drives the actuator and checks its position sensor. Without a software change it sets codes such as P2004 or P2015 and may limit power. A swirl flap solution file removes the control and monitoring from the ECU software.

What are the symptoms of a faulty swirl flap?

Typical signs are the engine warning light, intake manifold runner codes from P2004 to P2017, weak pulling at low rpm, higher fuel use and engine surge. A loose flap or screw can also be drawn into the cylinder, so unusual noises from the engine should be checked straight away.

Which BMW engines have swirl flaps?

The best-known examples are the M47 and M57 diesel engines; many searches also mention the N47, N57, B47 and B57. Check your engine code before you order. Our swirl flap card lists 25 BMW ECUs, including Bosch EDC16C31, EDC17C06, EDC17C50, EDC17CP09, EDC17CP45 and EDC17CP49.

Is the swirl flap solution available for Mercedes engines?

Yes. The swirl flap card lists 52 Mercedes ECUs, including Bosch EDC15C6, EDC16C3, EDC16C31, EDC16CP31, EDC17C66 and EDC17CP46, and Siemens SID307. Send us the ECU read and the engine code so we can confirm the exact software version.

Is the Isuzu 4JJ1 supported?

The card lists 2 Isuzu ECUs: a Bosch EDC17CV41 and a Transtron ECU. The ECU fitted to a 4JJ1 depends on the vehicle and year, so send us the original read before you order.

What does a swirl flap delete kit include?

A typical kit has one aluminium blanking plug per cylinder plus new intake manifold gaskets. It replaces the flaps mechanically. It does not change the ECU software, so it is normally combined with a swirl flap solution file.

How much does a swirl flap delete cost?

The software part starts from $75 per file (1 credit) on the CaracalTech solution card. The total cost depends on the engine, the ECU and whether the manifold needs blanking plugs, cleaning or replacement.

References

Usage note: swirl flap solution files are supplied for off-road machinery and motorsport vehicles only, where local regulations permit; they are not intended for vehicles used on public roads.

📍For more information and probable problems feel free to contact us: [email protected]
